← All projects Case study · SIH 2026 · problem statement SIH26249 (Ministry of Defence)

SHIKRA: predicting engine removals for an aircraft fleet

Problem: Aircraft availability suffers when maintenance is reactive. Can remaining-life predictions decide when to remove an engine, and does that keep more aircraft flyable?
My role: Team lead of a 6-member team that built both SHIKRA and ShadowCat. Here I built the remaining-life model, the data ingestion and quarantine, and the audit log.
Links: Repo Model card Limitations

11.64FD001 RMSE vs 18.45 CNN baseline

81%coverage of 80% intervals (held out)

72.7 → 0unscheduled removals per year

Try it: one held-out engine, cycle by cycle

Real predictions from the committed model on engines it never trained or calibrated on. The band is the conformal 80% interval. SHIKRA advises removal when the pessimistic edge (q10) reaches R* = 5 cycles.

Engine

Drag through the engine's life

–cycle / life

–true RUL

–80% band

–advice (q10 ≤ R*)

80% conformal bandmedian (q50)true RUL (capped at 125, dashed)removal threshold R*

ML lens

Remaining-life model

Data and splits

NASA C-MAPSS turbofan degradation data. The wing model trains on FD001 and FD003 with a frozen, engine-disjoint split (seed 2026): 120 training engines, 40 for conformal calibration, and 40 held out for the fleet simulation only. Nothing about the held-out engines touches training, calibration or the removal threshold.

Model

Causal rolling features over the past 5, 10, 20 and 30 cycles (last value, mean, std, slope), so a prediction never sees the future.
LightGBM quantile regressors at 0.05, 0.10, 0.50, 0.90 and 0.95, each an ensemble of 5 seeds; target capped at 125 cycles (the standard piecewise convention).
Inductive conformal calibration on the 40 calibration engines widens the raw quantiles into intervals with the coverage they claim.

Results on the official test sets (last cycle per engine)

Subset	Babu 2016 CNN	SHIKRA RMSE	MAE	RMSE when RUL ≤ 30	Engines
FD001	18.45	11.64	8.40	3.37	100
FD002	30.29	13.45	9.47	3.49	259
FD003	19.82	14.50	9.83	2.60	100
FD004	29.16	14.33	9.48	7.39	248

RMSE against true RUL capped at 125. Uncapped RMSE is in the model card (12.95 on FD001).

Do the intervals mean what they say?

Split	Nominal	Raw quantiles	After conformal	Mean width
FD001 test	80%	61%	81%	30.9 cycles
FD003 test	80%	57%	79%	30.1 cycles
Held-out replay (400 points)	80%	56%	81.8%	24.8 cycles

Raw LightGBM quantiles were overconfident: an "80%" band held the true value only 56 to 61% of the time. Conformal calibration fixed that without retraining.

What did not work

A 2-layer temporal attention LSTM matched the RMSE but scored about 2× worse on the NASA penalty metric on FD003, so LightGBM stayed.
A fleet-readiness forecast lost to a simple persistence baseline (MAE 2.274 vs 1.552 at 7 days). It is reported, not hidden.

Systems lens

From predictions to decisions

Fleet simulation

A discrete-event simulation of a synthetic 54-aircraft wing, 30 seeds, with common random numbers so every policy faces the same failures. The removal threshold R* was chosen on calibration engines only.

Policy	Serviceability	95% CI	Unscheduled removals / yr
Reactive	56.5%	[56.0, 56.9]	72.7
Fixed-interval preventive	47.6%	[47.2, 48.1]	13.2
SHIKRA (q10 ≤ R*)	56.3%	[55.7, 56.8]	0.0
Oracle (perfect prediction)	56.6%	[56.1, 57.2]	0.0

The honest finding: predictions removed every unscheduled engine failure, but serviceability did not move, because the spare-engine pipeline was the binding constraint, not warning time. Even the perfect-prediction oracle gains almost nothing. The lever map in the app shows where faster repair and supply would pay off.

Scheduling and supply

Hangar scheduling with OR-Tools CP-SAT: 64% less weighted tardiness than earliest-due-date on 200 synthetic instances (174.9 → 62.3), never worse. On the simulated wing it tied on 60 of 60 snapshots, which showed bays are not the bottleneck.
Two-echelon VARI-METRIC spares positioning and a 180-day foreign supply halt stress test that ranks which parts to make locally first.

Audit log

Every Approve or Defer decision by an engineering officer is appended to an HMAC-SHA-256 chain in a local database. Editing any past record breaks every hash after it. It is tamper-evident, not tamper-proof: the key lives on the machine, which the limitations file says plainly.

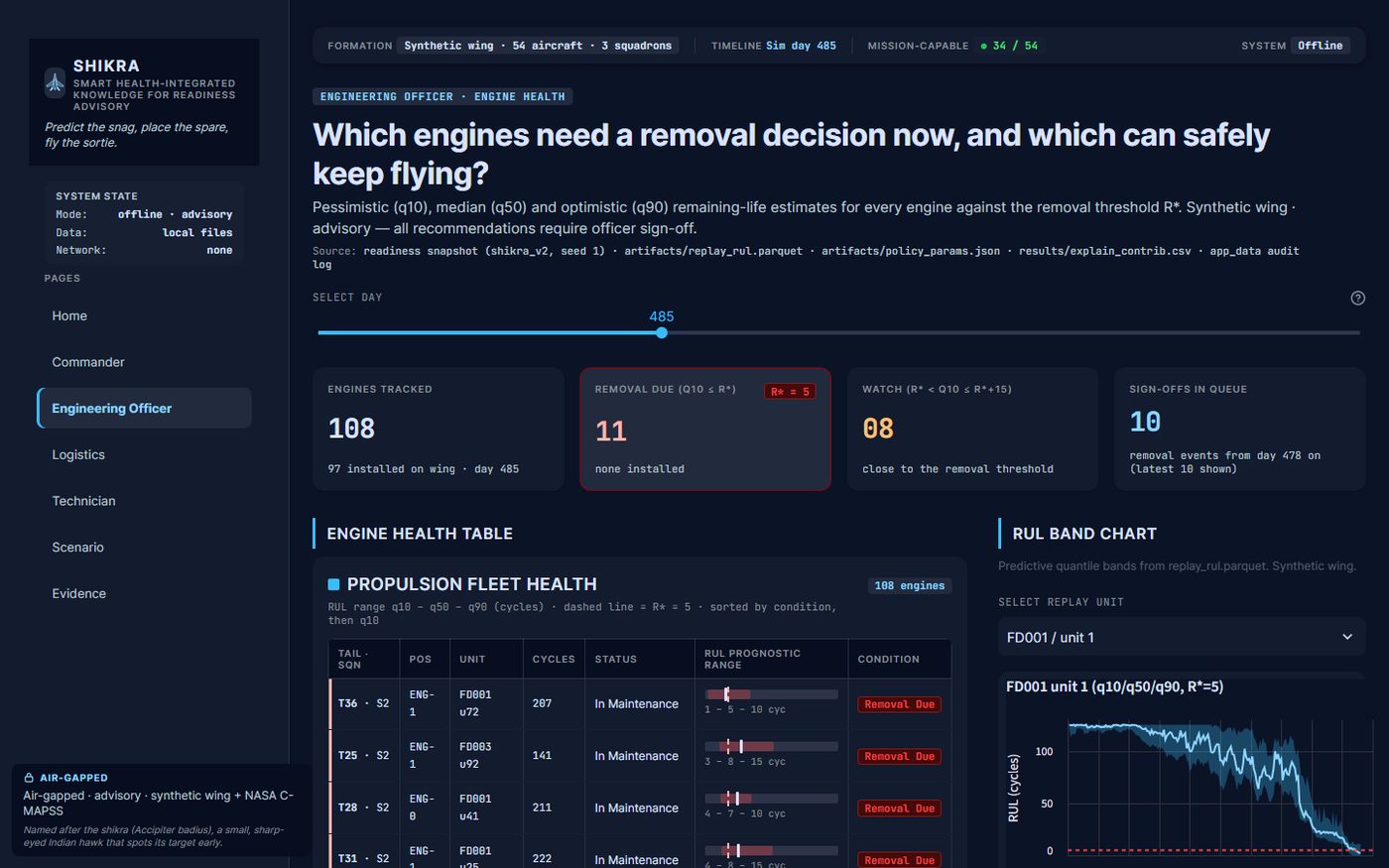

Engineering Officer page of the SHIKRA app showing engine health, removal-due counts and a remaining-life band chart — Engineering Officer view of the offline Streamlit app (synthetic wing, not real air force data).

Quality and reproducibility

140 automated tests, run in CI on every push.
Every committed result regenerates byte-for-byte from one command (make verify, about 73 minutes; an 8-minute check without the long supply-shock run).

git clone https://github.com/muthukkumaranb/shikra.git && cd shikra
pip install -r requirements.txt     # Python 3.11
make verify                         # regenerates and diffs every result

What I'd do next

Model the spare-engine pipeline explicitly in the optimiser, since that is where readiness is actually lost.
Move the audit key to hardware-backed storage so the log becomes tamper-resistant, not just tamper-evident.
